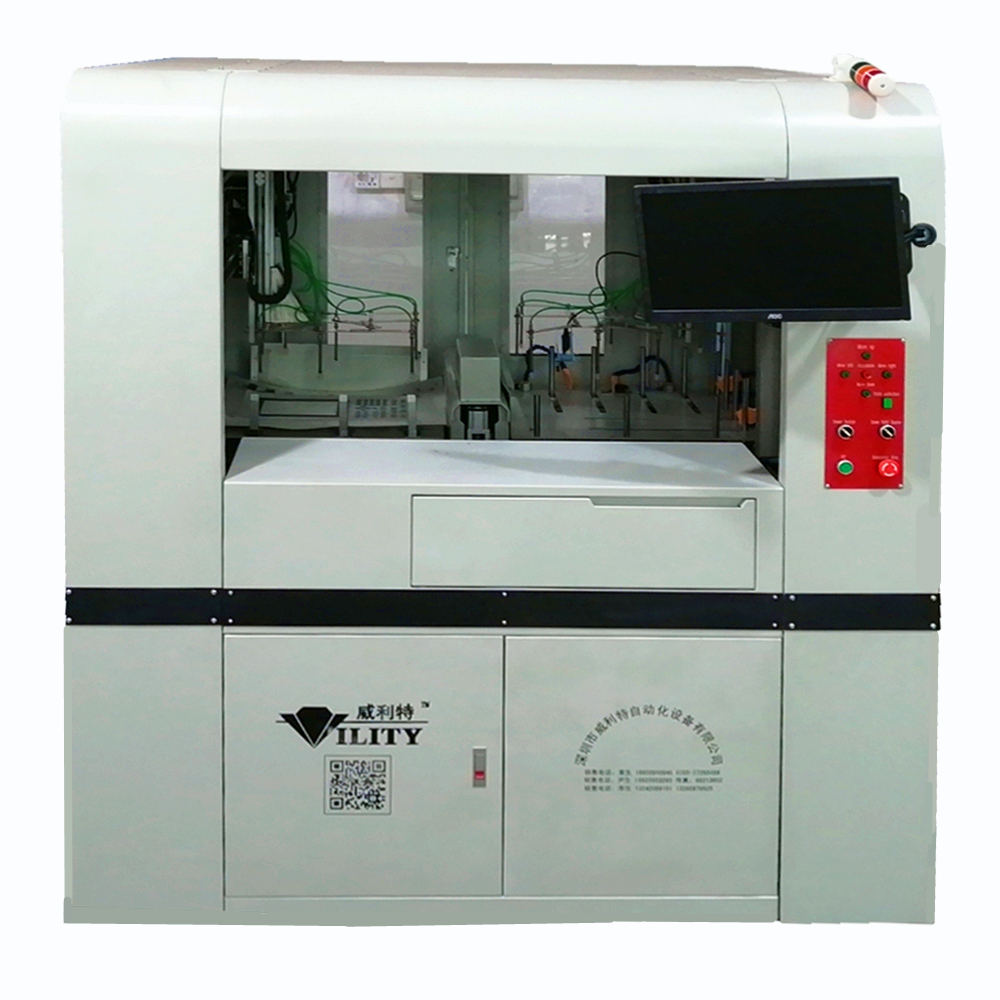

1. Brief Introduction
Automatic punching machine according to different industries, also called automatic drone, computer drone, CCD automatic punching machine, automatic electric machine, is actually the same equipment used in different industries.
2. Applicable industries: FPC and PET
The following targets can be identified.
3. The whole working process included in placing, fetching , CCD positioning, punching and collecting.
A. Placing and adjusting.
(1) place a stack of well materials on the top of lifting platform.
(2) Adjust the position of the manipulator and locate the height of the lifting platform.
B. Fetch materials and CCD position punching.
(1)Adjust the manipulator, fetch a piece of material from the feeding lifting platform, through the input trajectory to the specified location, adjust the speed of punching machine and CCD will scan and make the punching head move to accurate location by setting X1, Y1 move.
(2) Raising the lifting platform to ensure that the material height is always in the same plane. When the material is finished, the sensor will send a signal.
C. Receiving Material
When a piece of material finish hole punching, the manipulator pick it and send to collect the lift platform. At the same time, the receiving platform down, Make the platform height keep unchanged. When the material collected from a certain height, inductive sensors to send a signal.
Parameters
| Item | Parameters |
| Punching diameter | 1.0mm-5.0mm |
| Max punching force | 600kg |
| Punching thickness | 0.1-1.2mm |
| Punching speed | 0.5s/hole |
| Pubching accuracy | ±0.02mm |
| Power consumption | 1.5kw |
| Voltage | AC220V |
| Overall dimensions | 1620*1420*1300mm |
| machine weight | 450kg |
Our Commitment And Services
◪ 1 year warranty for the whole machine, no charge for the repair of the machine during the warranty period. (Wear and tear parts and man-made damage are excluded).
◪ Lifetime free software system upgrade, you do not need to worry about any costs incurred during the period.
◪ We have a strong after-sales system. You buy our equipment, as long as there is a problem, call our after-sales phone at any time that there will be staff to solve your problems in a timely manner!
